SSPB320NEW
CBN 3-Flute Long Neck Ball End Mill
●Adopt spiral ball shape to improve sharpness of cutting edge．
●3-flute shape from R0.1 enables high efficiency machining even with small diameter．
●Strong back taper shape reduces cutting load and chattering．
Material
CubicBoron Nitride
Cutting Possibility of Work Material Hardness
Up to 70HRC
Number of Flutes
3 Flutes
Helix Angle
20°

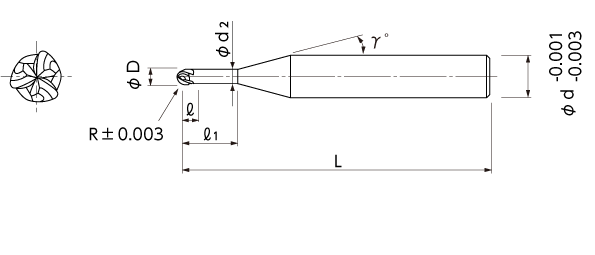

Conner
±0.003
φd-0.001/-0.003
Applications
3D Milling
Work Materials
Machinable indication by
,
,
| Carbon Steel | Alloy Steel | Prehardened Steel | Hardened Steel | Stainless Steel | Heat Resistant Alloy | Aluminum Alloy | Copper | Resin | Graphite | Hard Brittle Material | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ～ 52HRC |
～ 60HRC |
～ 65HRC |
～ 70HRC |
||||||||||
|
|
|
|
||||||||||
| Carbon Steel | Heat Resistant Alloy |
|||
|---|---|---|---|---|
| Alloy Steel | Aluminum Alloy | |||
| Prehardened Steel |
Copper | |||
| Hardened Steel |
～ 52HRC |
|
Resin | |
| ～ 60HRC |
|
Graphite | ||
| ～ 65HRC |
|
Hard Brittle Material |
||
| ～ 70HRC |
|
Hard Brittle Material |
||
| Stainless Steel | ||||
